TSCI-600LR-SWG-R-WW-1A
Scientific
TSCI-600LR-SWG-R-WW-1A

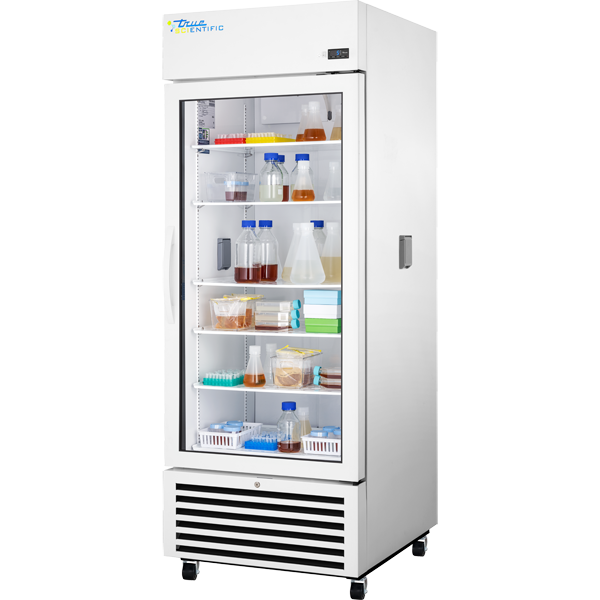

True Scientific – 600 Capacity in Liters • Laboratory Unit • Refrigerator – Swing Glass Door – Right Door Hinge – White Exterior • White Interior – 115 Voltage • Revision A
Spec Sheet
CAD File
Watch Video
Request a Quote Contact Us
| Specifications | |
|---|---|
| Model | TSCI-600LR-SWG-R-WW-1A |
| Door Count | 1 |
| Shelf Count | 7 |
| Weight (lbs) | 365 |
| Weight (KG) | 165 |
| Dimensions | Imperial | Metric |
|---|---|---|
| Width | 30 | 762 |
| Depth | 29–3/4 | 756 |
| Height | 81–11/16 | 2075 |
| CORD LENGTH | 10 | 3.05 |
| Electrical | |
|---|---|
| Amps | 1.8 |
| Voltage | 115/60/1 |
| NEMA Configuration | 5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
-
Refrigeration System
- Refrigeration system specifically designed to maintain cabinet temperatures between 2°C - 10°C (36°F - 50°F).
- Expertly designed airflow system controls temperature uniformity throughout the cabinet within +/-1˚C.
- Self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- Reciprocating hermetic compressor paired with forced air copper tube, aluminum fin condenser.
- Automatic defrost.
- State-of-the-art, electronically communicated evaporator and condensing fan motors. Produces less heat, reduces energy consumption, and provides more efficient airflow.
-
Cabinet Construction
- Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent. White aluminum back.
- Interior - attractive, white aluminum interior liner with a stainless steel floor.
- Remote alarm contacts.
- Insulation - entire cabinet structure is foamed-in-place using a high density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Probe access port in the back of the unit.
-
Door
- Low-E double pane thermal insulated glass assembly.
- Door lock included.
- Door fitted with 12” (305mm) long extruded handle. Advanced technology with built-in antimicrobial properties protecting the handle.
- Door ajar alarm
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Self-closing doors, positive seal, torsion type closure system.
-

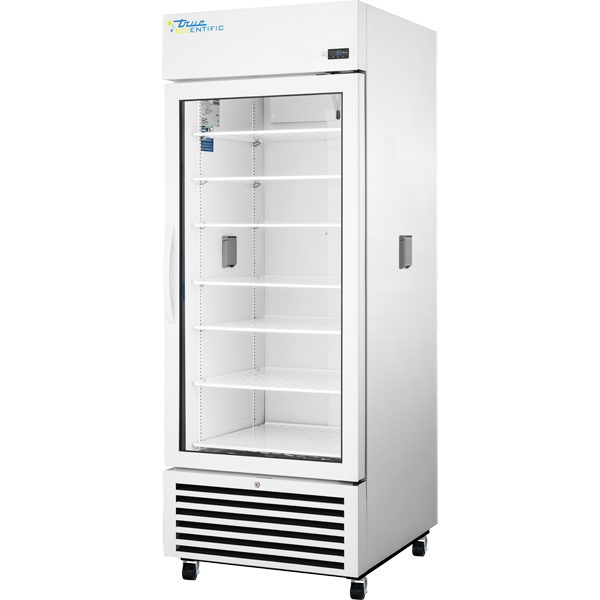

Shelving
- Powder-coated, perforated sheet metal shelves adjustable in 1/2 inch (13 mm) increments. 7 shelves total.
- Four (4) stainless steel shelf clips are included per shelf.
-
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
-
Optional Features/accessories (upcharge And Lead Times May Apply)
- Stainless steel interior
- Stainless steel exterior
- Left door swing
- Additional perforated sheet metal shelves
- Wire shelves
- 6" standard legs
- 6" seismic flanged legs
True Scientific series utilizes the most advanced technologies designed specifically for pharmacy, laboratory, and clinical applications. Energy efficient refrigeration system with innovative airfow technology specifically designed to maintain cabinet temperatures between 2°C – 10°C (36°F – 50°F). Self-Cleaning condenser technology eliminates the need for cleaning the condensing coil, reduces energy consumption, and helps maintain the tightest temperatures. Energy-efficient and environmentally friendly R290 hydrocarbon refrigerant. Temperature is measured in a glycol-filled bottle which is displayed on the control to simulate actual product temperature. In the event of a high/low-temperature alarm, door opening, temperature sensor failure or power failure, an alarm will be activated, helping to prevent product loss. Built-in antimicrobial properties to protect the handle. Control has a battery back up feature and is locked at the factory to prevent inadvertent changes to the settings.
