Retail Merchandiser
TRM4M-YY-BLK-WHT-1BLKLLLL-4
Retail Merchandiser
TRM4M-YY-BLK-WHT-1BLKLLLL-4

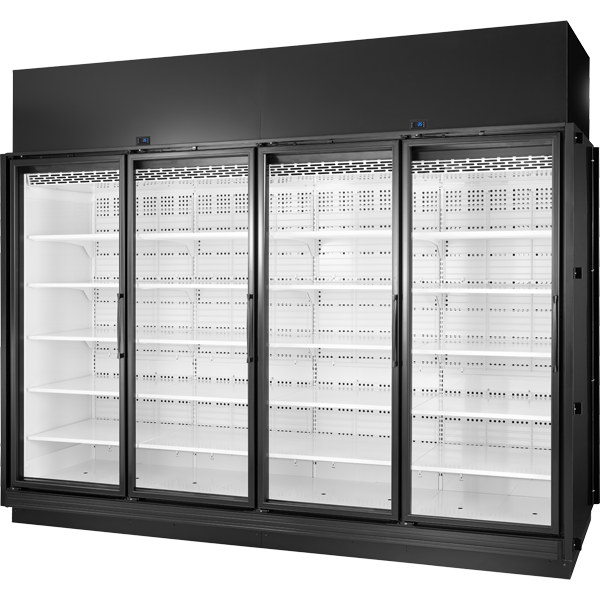

True Retail Merchandiser • 4-Door • Medium Temp – In Line Left Panel/In Line Right Panel – Black Exterior – White Interior – Aluminum Frame Black Doors • All Left Door Hinge – 4000K LED Lighting
Spec Sheet
CAD File
Request a Quote Contact Us
| Specifications | |
|---|---|
| Model | TRM4M-YY-BLK-WHT-1BLKLLLL-4 |
| Door Count | 4 Doors |
| Shelf Count | 20 |
| Weight (lbs) | 1760 |
| Weight (KG) | 798 |
| Dimensions | Imperial | Metric |
|---|---|---|
| Width | 127–1/8 | 3227 |
| Depth | 38–7/8 | 987 |
| Height | 102 | 2591 |
| CORD LENGTH | 10 | 3.05 |
| Electrical | |
|---|---|
| Amps | 10.6 |
| Voltage | 208-240V/60Hz |
| NEMA Configuration | 6-20P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
-
Design
- True’s commitment to using the highest quality materials and energy efficient refrigeration systems provides the user with colder product temperatures and lower utility costs.
- Take advantage of the install flexibility, convenience, and efficiency of this self-contained case. Fit TRM’s through 82” height and 41” wide openings, move the case into location, install the compact sealed condensing systems and plug it in. No refrigeration connections or technicians needed for install.
-
Refrigeration System
- Environmentally friendly R290 Natural Refrigerant system.
- Self-contained factory-charged and sealed refrigeration system.
- The True Dynamic Refrigeration Response System™ allows for quick product pull down where and when cooling demand is needed.
- Refrigeration decks ship separately; installed onsite.
- Self-contained factory-charged and sealed refrigeration system.
- Plug-and-play electrical system for seamless installation (No refrigeration tech or electrician needed).
-
Doors
- Self closing doors with stay open feature.
- “Low-E” double pane thermal insulated glass door.
- Viewable glass height of 70” for maximum product display.
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
- Right most door is field reversible.
-
Shelving
- Total of 20 (5 per door) adjustable, solid white powder coated cantilever shelves 30”W x 25”D (762mmW x 635mmD).
-
Led Lighting
- 4000k color temperature LED interior lighting, provides brilliant lighting throughout the cabinet.
-
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 208-240V-1PH-60Hz, cord and plug set included.
- L6-20P
-
Optional Features/accessories Upcharge And Lead Times May Apply.
- Peg Rack Panels (Includes 5 Peg Hooks)
- Additional shelves
- Black interior
- Integrated heated drain pan
R290 natural refrigerant. Self-contained factory-charged and sealed refrigeration system. Interior finish: White. Exterior finish: Black. Temperatures of 32°F to 41°F (.5°C to 3.3°C). Self-cleaning technology. NSF/ANSI Standard 7 Type II compliant for the storage and/or display of packaged or bottled product. 4000k color temperature LED interior lighting. Total of 20 (5 per door) adjustable, solid white powder coated cantilever shelves 30”W x 25”D (762mmW x 635mmD). Energy Star® listed.
