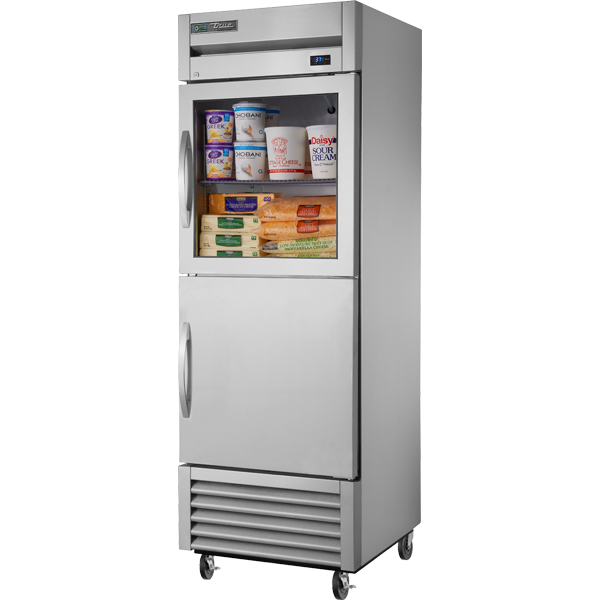

T-23-1-G-1-HC~FGD01

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.
• Cabinet Construction
  • Exterior - Stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back.
  • Interior - attractive, clear coated aluminum liner. Stainless steel floor with coved corners.
  • Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.
• Doors
  • Solid half door - stainless steel exterior with clear aluminum liner to match cabinet interior. Glass half door - “Low-E”, double pane thermal glass assembly with extruded aluminum frame. Door locks standard.
  • Solid door fitted with 12" (305 mm) long, lifetime guaranteed recessed handle. Glass door fitted with 15" (381 mm) long extruded aluminum handle.
  • Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
• Shelving
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.
• Lighting
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Model Features
  • Exterior temperature display.
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 2–1/2" (64mm) castors.
  • Alternate door hinging (factory installed).
  • Additional shelves.
  • Half door bun tray racks. Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).
