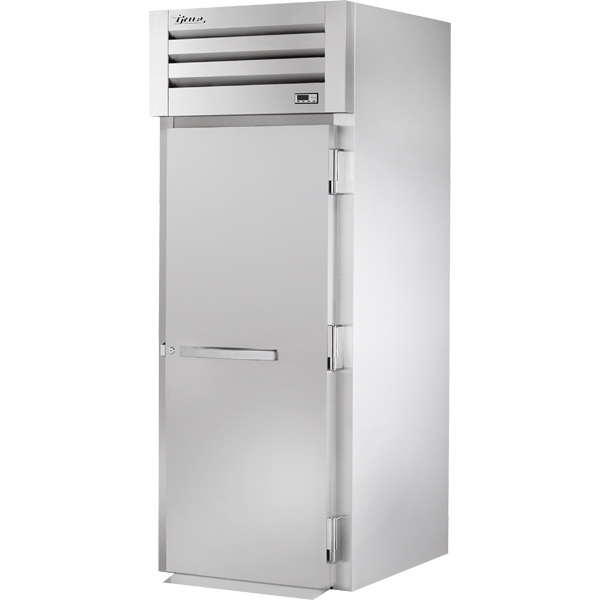

STG1HRI89-1S

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s solid door roll-in heated cabinets are designed with enduring quality that protects your long term investment.
• Heater System
  • Cabinet designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C). Heating system controlled by exterior on/off switch and electronic temperature control.
  • Two (2) stainless steel (for corrosion resistance), finned tube heating elements (1000 watts each) for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch.
  • Manually controlled vent located on top of the cabinet for positive humidity control.
• Cabinet Construction
  • Stainless steel breaker caps.
  • Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • One (1) heavy gauge stainless steel ramp.
  • Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27""L x 29""D x 72""H (686 mm x 737 mm x 1829 mm)(supplied by others).
• Door
  • Lifetime guaranteed bolt style door lock standard.
  • Lifetime guaranteed heavy duty all metal working door handle.
  • Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, Three (3) per door section.
  • Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
• Lighting
  • Incandescent interior lighting; lights activated by exterior on/off switch, safety shielded.
• Model Features
  • Exterior, color coded, temperature display; accurate direct reading of internal cabinet temperature.
  • Designed to hold warm baked or cooked food. Cabinet is not designed to heat ambient or cold product.
  • Interior bumpers protect cabinet walls from abuse caused by roll-in carts.
  • 12" x 20" (305 mm x 508 mm) pan for water included, if additional humidity is required.
  • NSF/ANSI Standard 4 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/208-240/60 Hz. single phase, 20 amp dedicated outlet. Cord and plug set included.
  • NEMA 14-20R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • Hasp lock.
  • Field reversible hinge.
  • Stainless back. (STR, STA, STG)
  • Security package.
