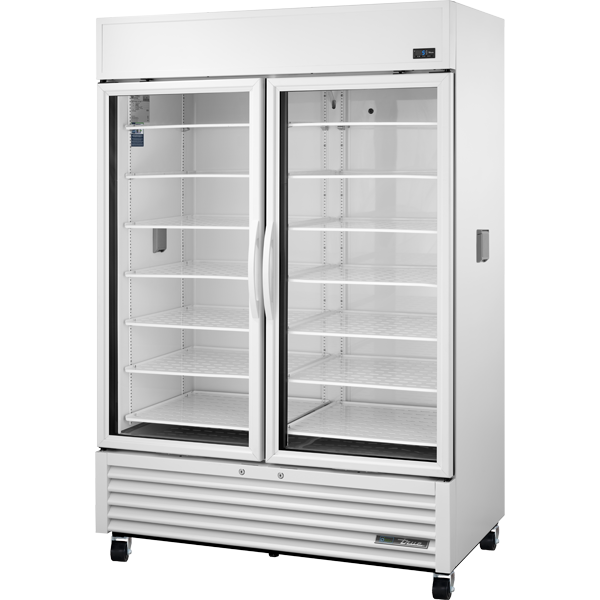

TSCI-1200R-G-PH~TSL01 RX3 2P NS

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Refrigeration System
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Cabinet Construction
  • Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum interior liner with a stainless steel floor.
  • Frame rail fitted with leg levelers.
  • Insulation - entire cabinet structure is foamed-in-place using a high density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, white powder coated for corrosion protection.
• Doors
  • “Low-E”, double pane thermal insulated glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology.
  • Each door fitted with 12" (305 mm) long extruded handle. Advanced technology with built-in antimicrobial properties to protect the handle.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
  • Self-closing doors, positive seal, torsion type closure system.
• Shelving
  • Fourteen (14) powder-coated, perforated sheet metal shelves 22 5/16"D x 24 1/4"W (566 mm x 615 mm).
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable in 1/2" (13 mm) increments.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• Options
  • Additional shelves
  • External Alarm Relay
  • Stainless steel exterior and interior
  • Castors
  • 2 inch access ports (2P)
  • Internal duplex outlet (1D)
  • 2.5 inch castors
  • Wire shelves
  • Chromatography mast
